Sumitomo

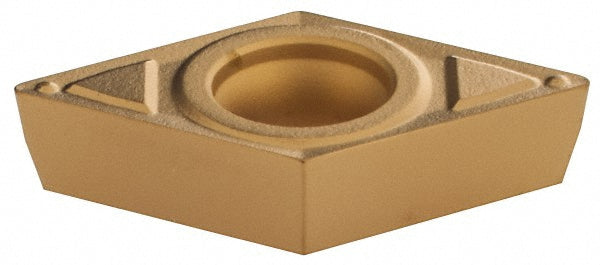

DCMT11T304N-SK Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBW5P
MFR# 19RBW5PISO/ANSI# DCMT11T304N-SKSeries DC
$16.41List $21.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBW5P is a DCMT11T304N-SK solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeDCMT32.51ENK
Chip breakerENK
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304N-SK
Manufacturer gradeAC830P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
