Sumitomo

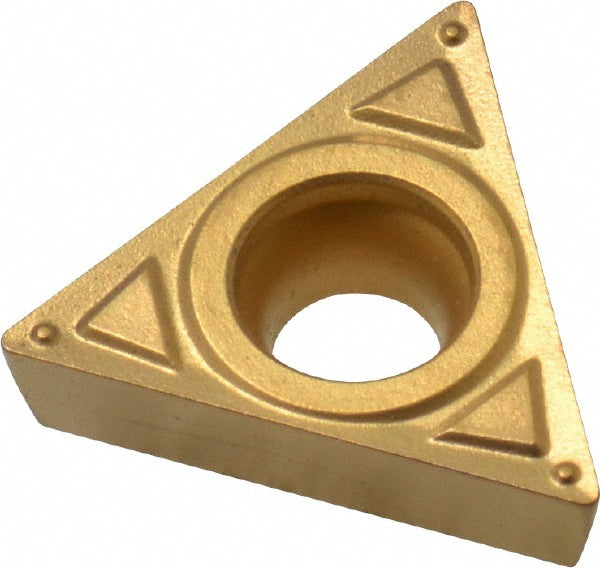

TCMT16T304N-SK Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBW9K
MFR# 19RBW9KISO/ANSI# TCMT16T304N-SKSeries TC
$13.88List $17.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RBW9K is a TCMT16T304N-SK solid carbide indexable insert, grade AC830P, Coated coated. Suited for m, p.
Specifications
Ansi codeTCMT32.51ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1690
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304N-SK
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakePositive
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
