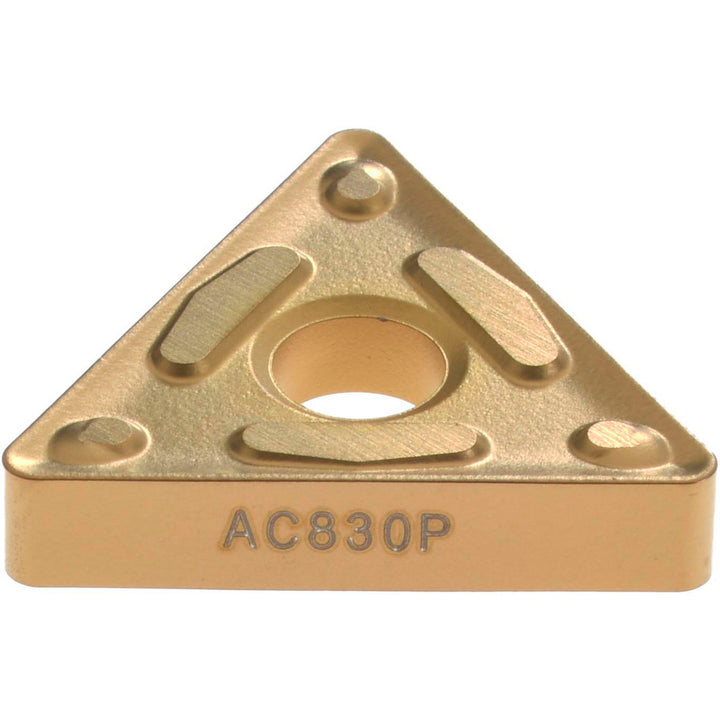

TNMG160308N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBWAX

Sumitomo

TNMG160308N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBWAX

MFR# 19RBWAXISO/ANSI# TNMG160308Series TN

$7.96List $10.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RBWAX is a TNMG160308N-UG carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeTNMG322
Ansi size code322
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160308N-UG
Iso insert codeTNMG160308
Iso size code160308
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
