Sumitomo

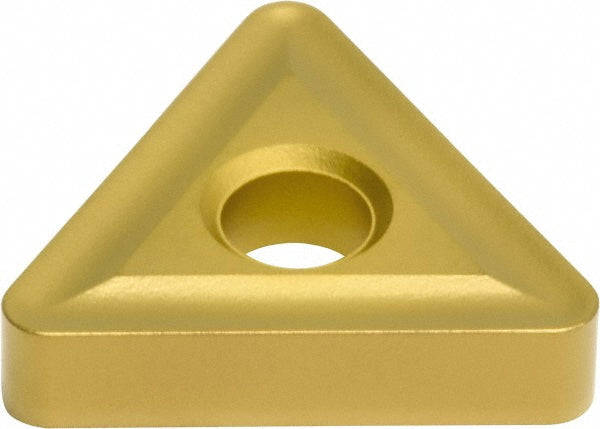

TNMG270632N-UZ Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBWBW
MFR# 19RBWBWISO/ANSI# TNMG270632N-UZSeries TN
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBWBW is a TNMG270632N-UZ solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeTNMG548ENZ
Chip breakerENZ
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/8
Hole diameter0.2500
Included angle60.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0827
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code548
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270632N-UZ
Manufacturer gradeAC830P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
