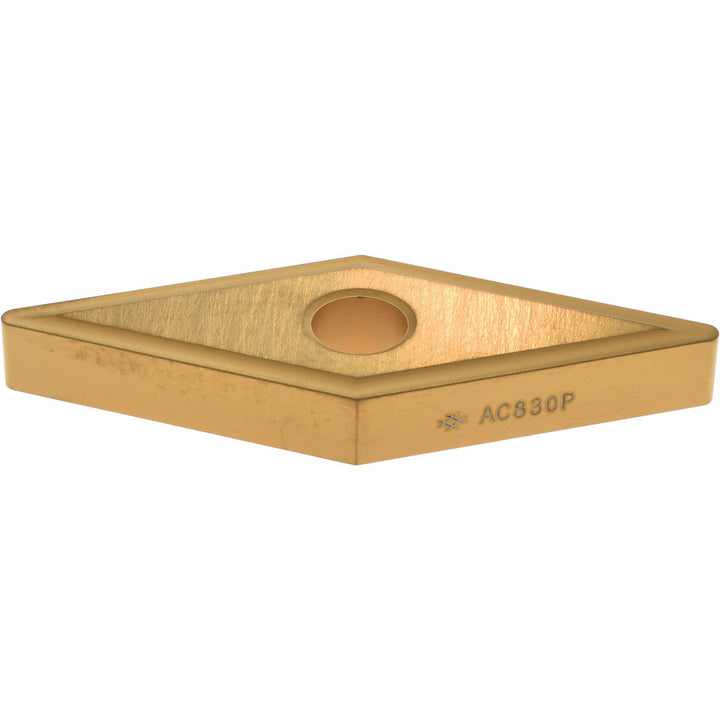

VNMG220408N-UZ Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBWF7

Sumitomo

VNMG220408N-UZ Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBWF7

MFR# 19RBWF7ISO/ANSI# VNMG220408Series VN

$22.72List $29.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RBWF7 is a VNMG220408N-UZ carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeVNMG432
Ansi size code432
Chip breakerENZ
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle35
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8701
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code432
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220408N-UZ
Iso insert codeVNMG220408
Iso size code220408
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
