Sumitomo

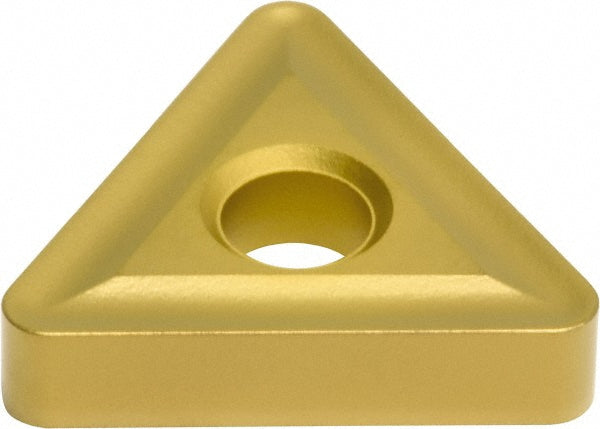

TNMG270616N-UZ Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ074
MFR# 19RJ074ISO/ANSI# TNMG270616N-UZSeries TN
$22.98List $29.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJ074 is a TNMG270616N-UZ solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeTNMG544ENZ
Chip breakerENZ
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.2500
Included angle60.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0827
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code544
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270616N-UZ
Manufacturer gradeAC820P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
