Sumitomo

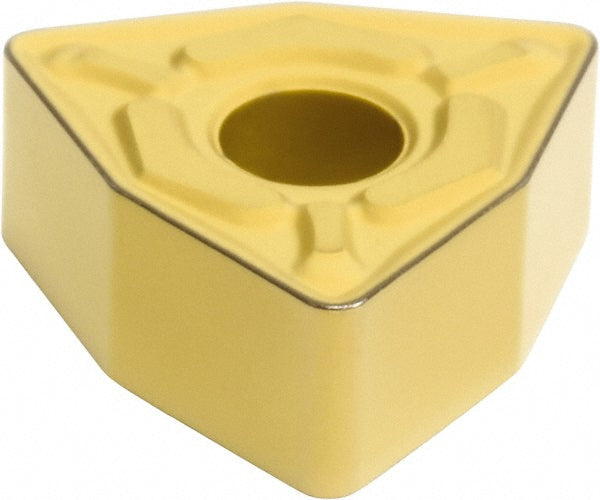

WNMG080404N-GU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ155
MFR# 19RJ155ISO/ANSI# WNMG080404N-GUSeries TN
$14.14List $17.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJ155 is a WNMG080404N-GU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeWNMG431EGU
Chip breakerEGU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-GU
Manufacturer gradeAC820P
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
