Sumitomo

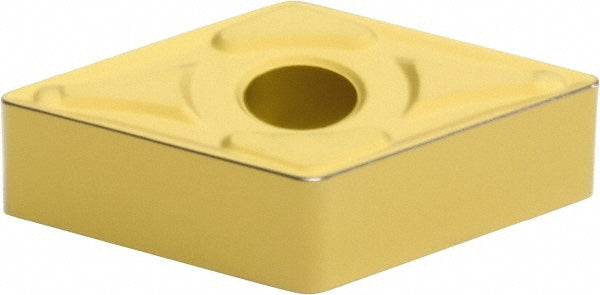

DNMG150404N-GU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ156
MFR# 19RJ156ISO/ANSI# DNMG150404N-GUSeries DN
$20.90List $26.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJ156 is a DNMG150404N-GU carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-GU
Manufacturer gradeAC820P
RakeNegative
Rake angle7
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
