Sumitomo

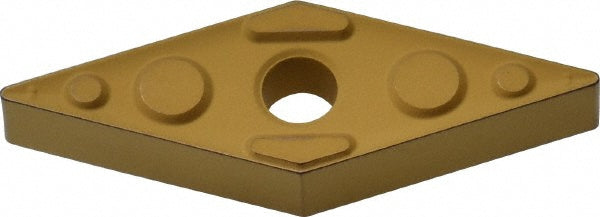

VNMG160404N-UG Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ296
MFR# 19RJ296ISO/ANSI# VNMG160404N-UGSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJ296 is a VNMG160404N-UG solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeVNMG331ENG
Chip breakerENG
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-UG
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
