Sumitomo

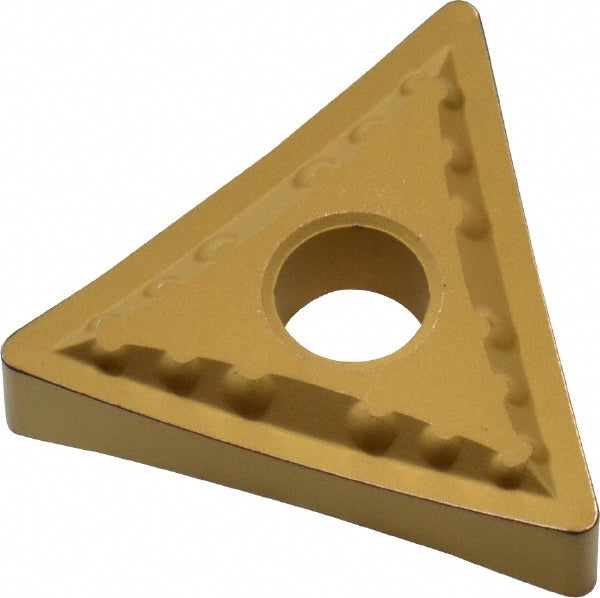

TNMG220408N-UP Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ350
MFR# 19RJ350ISO/ANSI# TNMG220408N-UPSeries TN
$13.89List $17.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJ350 is a TNMG220408N-UP solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeTNMG432EUP
Chip breakerEUP
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle60.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408N-UP
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
