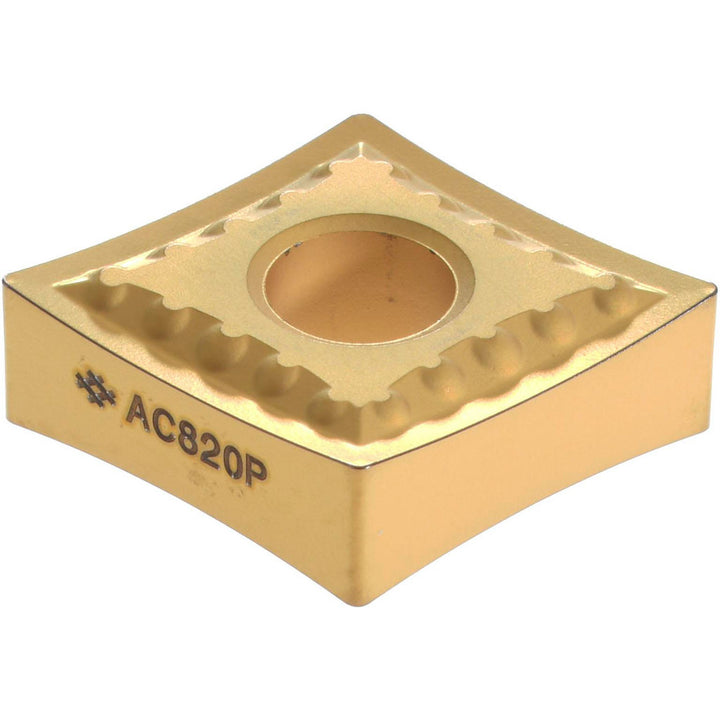

CNMG120404N-UP Carbide Insert, Grade AC820P, Absotech - Sumitomo 19RJ359

Sumitomo

CNMG120404N-UP Carbide Insert, Grade AC820P, Absotech - Sumitomo 19RJ359

MFR# 19RJ359ISO/ANSI# CNMG120404Series CN

$12.31List $15.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC820P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19RJ359 is a CNMG120404N-UP carbide indexable insert, grade AC820P, Absotech coated.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-UP
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
