Sumitomo

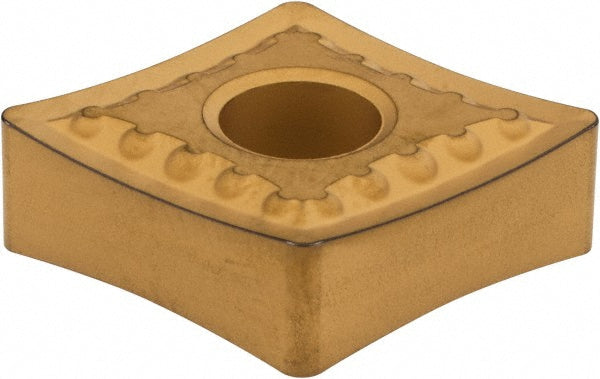

CNMG120408N-UP Solid Carbide Insert, Grade AC820P, Absotech - Sumitomo 19RJ360
MFR# 19RJ360ISO/ANSI# CNMG120408N-UPSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19RJ360 is a CNMG120408N-UP solid carbide indexable insert, grade AC820P, Absotech coated. Suited for m, p.
Specifications
Ansi codeCNMG432EUP
Chip breakerEUP
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-UP
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
