Sumitomo

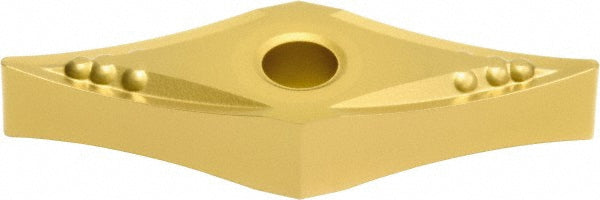

VNMG160404N-UP Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ374
MFR# 19RJ374ISO/ANSI# VNMG160404N-UPSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJ374 is a VNMG160404N-UP solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeVNMG331EUP
Chip breakerEUP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-UP
Manufacturer gradeAC820P
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
