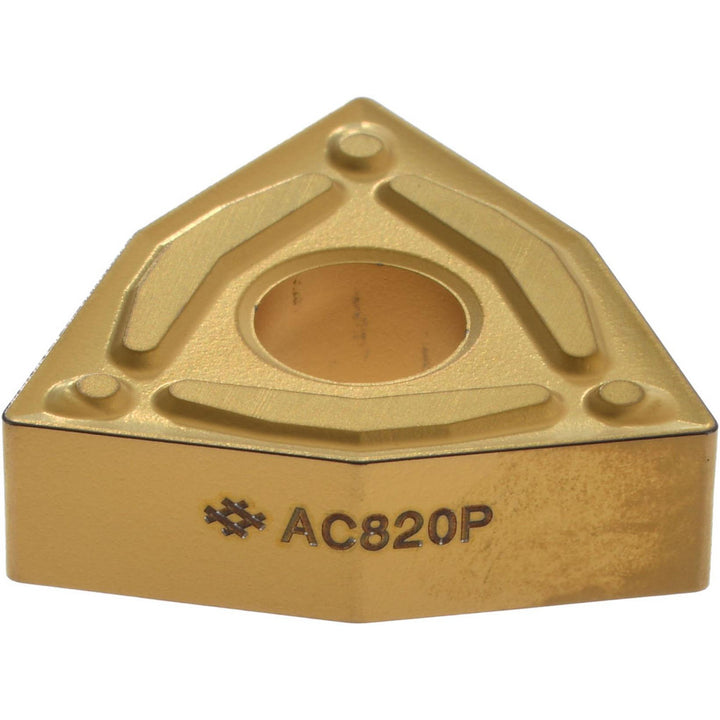

WNMG080404N-UG Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ383

Sumitomo

WNMG080404N-UG Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ383

MFR# 19RJ383ISO/ANSI# WNMG080404Series TN

$12.31List $15.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJ383 is a WNMG080404N-UG carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-UG
Iso insert codeWNMG080404
Iso size code080404
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
