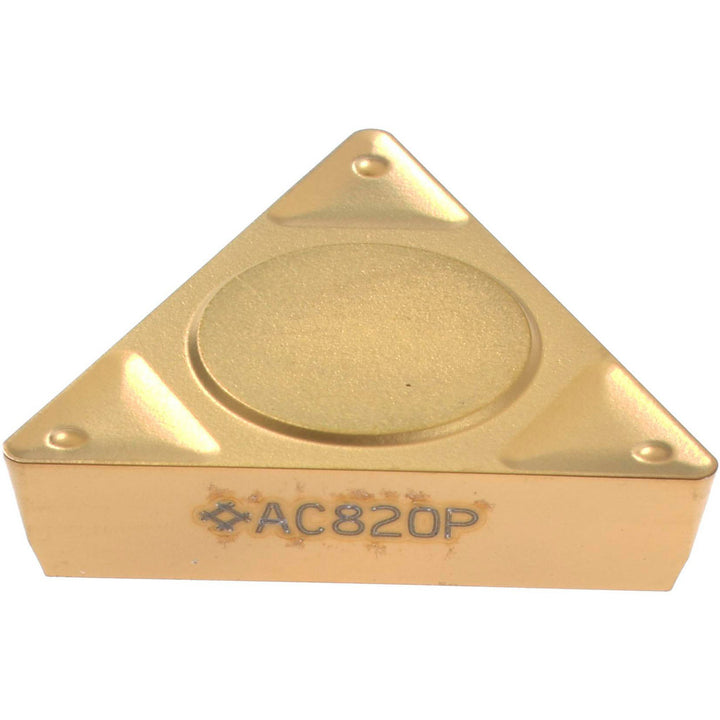

TPMR220408N-SF Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ469

Sumitomo

TPMR220408N-SF Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ469

MFR# 19RJ469ISO/ANSI# TPMR220408Series TPMR

$23.01List $29.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJ469 is a TPMR220408N-SF carbide indexable insert, grade AC820P, Coated coated. Suited for steel.

Specifications

Ansi insert codeTPMR432
Ansi size code432
Chip breakerENF
Chip breaker operationLight Machining; Medium Machining
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTPMR
Insert thickness in3/16
Iso codeTPMR220408N-SF
Iso insert codeTPMR220408
Iso size code220408
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialSteel
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
