Sumitomo

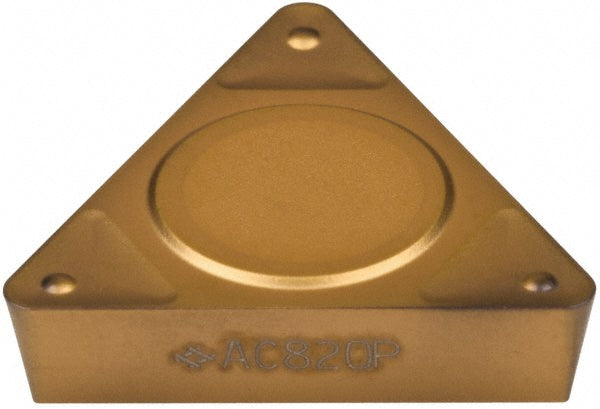

TPMT110304N-SF Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ471
MFR# 19RJ471ISO/ANSI# TPMT110304N-SFSeries TPMT
$10.12List $12.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJ471 is a TPMT110304N-SF solid carbide indexable insert, grade AC820P, Coated coated. Suited for steel.
Specifications
Ansi codeTPMT221ENF
Chip breakerENF
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110304N-SF
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
