Sumitomo
TPMT110308N-SF Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ473
MFR# 19RJ473ISO/ANSI# TPMT110308N-SFSeries TPMT
$10.12List $12.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description

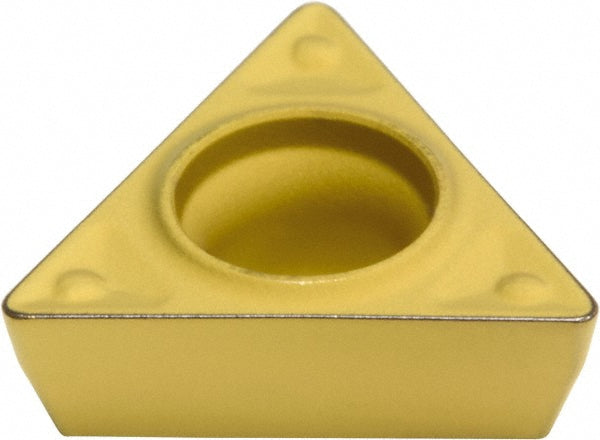

The Sumitomo 19RJ473 is a TPMT110308N-SF carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.
Specifications
Chip breakerENF
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1300
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110308N-SF
Manufacturer gradeAC820P
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
