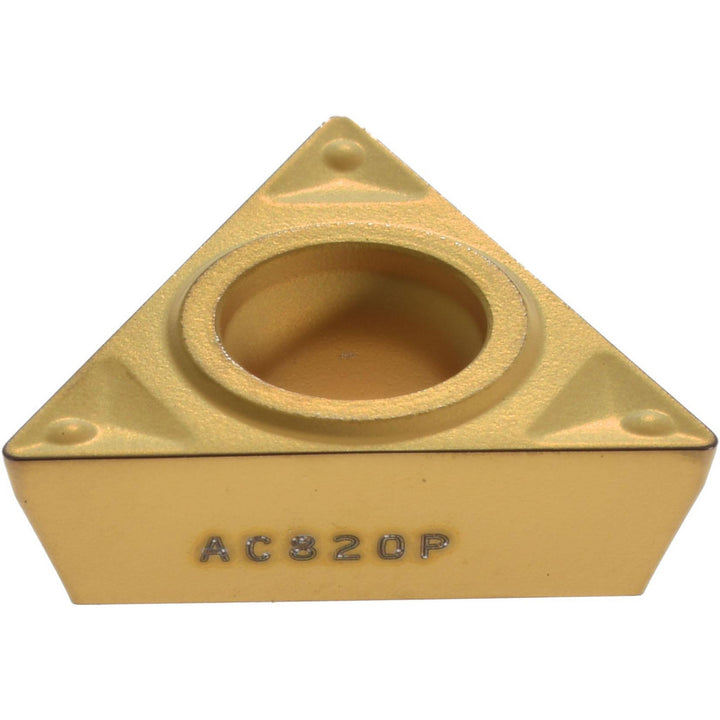

TPMT160404N-SF Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ475

Sumitomo

TPMT160404N-SF Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ475

MFR# 19RJ475ISO/ANSI# TPMT160404Series TPMT

$12.49List $16.01 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJ475 is a TPMT160404N-SF carbide indexable insert, grade AC820P, Coated coated. Suited for steel.

Specifications

Ansi insert codeTPMT331
Ansi size code331
Chip breakerENF
Chip breaker operationLight Machining; Medium Machining
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1690
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code331
Insert styleTPMT
Insert thickness in3/16
Iso codeTPMT160404N-SF
Iso insert codeTPMT160404
Iso size code160404
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialSteel
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
