Sumitomo

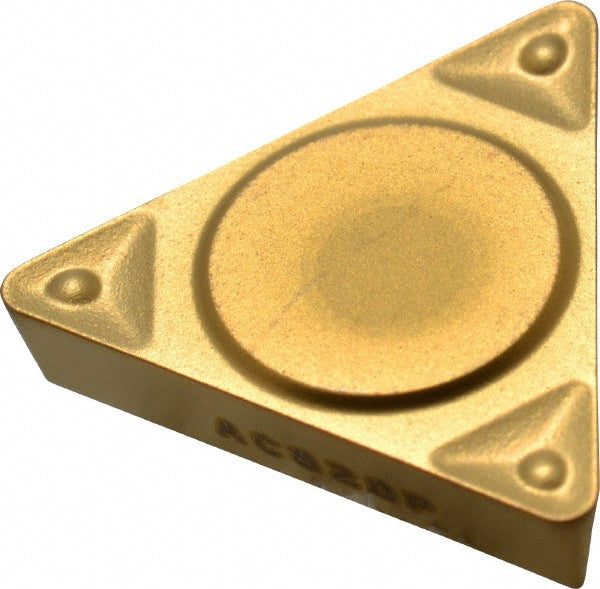

TPMR160308N-SF Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ486
MFR# 19RJ486ISO/ANSI# TPMR160308N-SFSeries TPMR
$13.41List $17.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJ486 is a TPMR160308N-SF solid carbide indexable insert, grade AC820P, Coated coated. Suited for steel.
Specifications
Ansi codeTPMR322ENF
Chip breakerENF
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160308N-SF
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
