Sumitomo

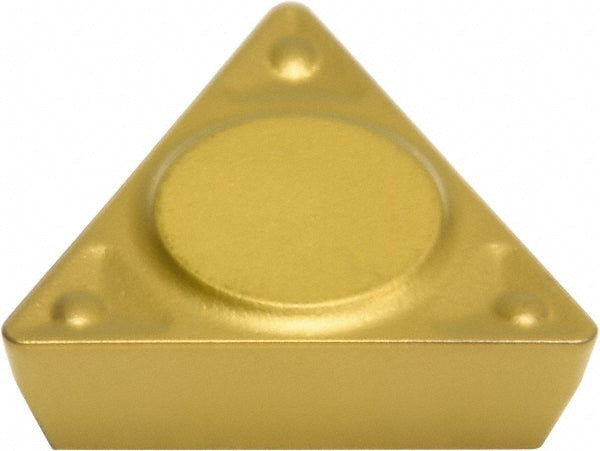

TPMR160312N-SF Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ487
MFR# 19RJ487ISO/ANSI# TPMR160312N-SFSeries TPMR
$12.54List $16.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJ487 is a TPMR160312N-SF solid carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.
Specifications
Ansi codeTPMR323ENF
Chip breakerENF
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code323
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160312N-SF
Manufacturer gradeAC820P
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
