Sumitomo

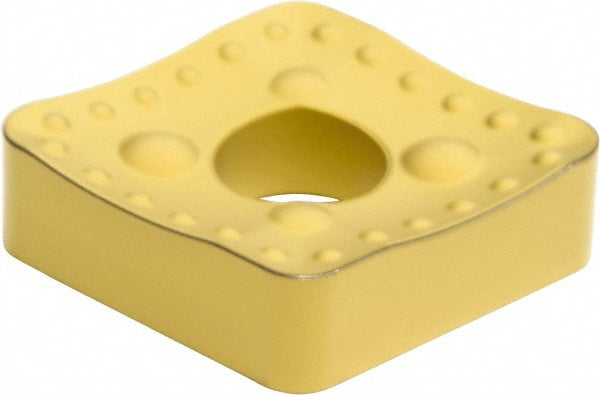

CNMM120408N-HG Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ495
MFR# 19RJ495ISO/ANSI# CNMM120408N-HGSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJ495 is a CNMM120408N-HG solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeCNMM432EHG
Chip breakerEHG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMM
Insert thickness in3/16
Iso codeCNMM120408N-HG
Manufacturer gradeAC820P
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
