Sumitomo

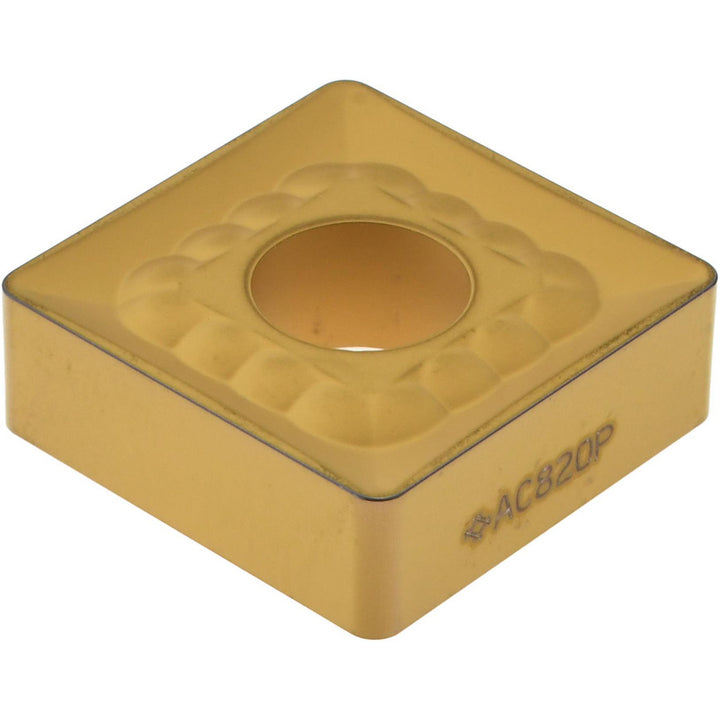

SNMM190612N-HP Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ693
MFR# 19RJ693ISO/ANSI# SNMM190612N-HPSeries SN
$23.40List $30.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJ693 is a SNMM190612N-HP carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEHP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.3126
Included angle90
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code643
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM190612N-HP
Manufacturer gradeAC820P
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
Width in3/4
