Sumitomo

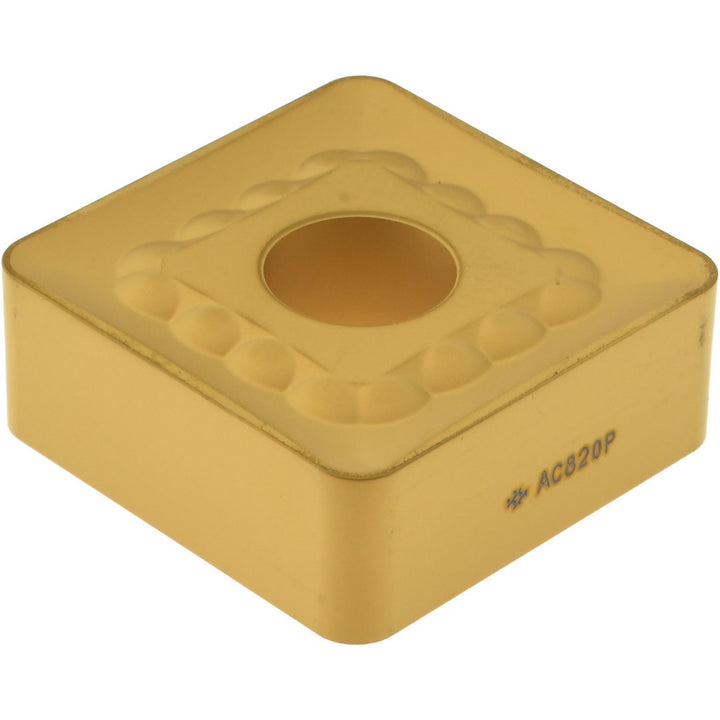

SNMM250924N-HP Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ696
MFR# 19RJ696ISO/ANSI# SNMM250924N-HPSeries SN
$56.35List $72.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeSquare
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJ696 is a SNMM250924N-HP carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEHP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/32
Hole diameter0.3622
Included angle90
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1
Insert materialCarbide
Insert shapeSquare
Insert size code866
Insert styleSNMM
Insert thickness in3/8
Iso codeSNMM250924N-HP
Manufacturer gradeAC820P
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
Width in1
