Sumitomo

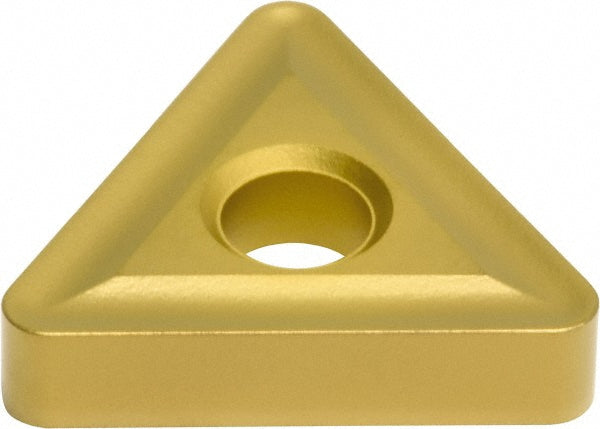

TNMG160408N-UZ Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ758
MFR# 19RJ758ISO/ANSI# TNMG160408N-UZSeries TN
$9.57List $12.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJ758 is a TNMG160408N-UZ carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerENZ
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408N-UZ
Manufacturer gradeAC820P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
