Sumitomo

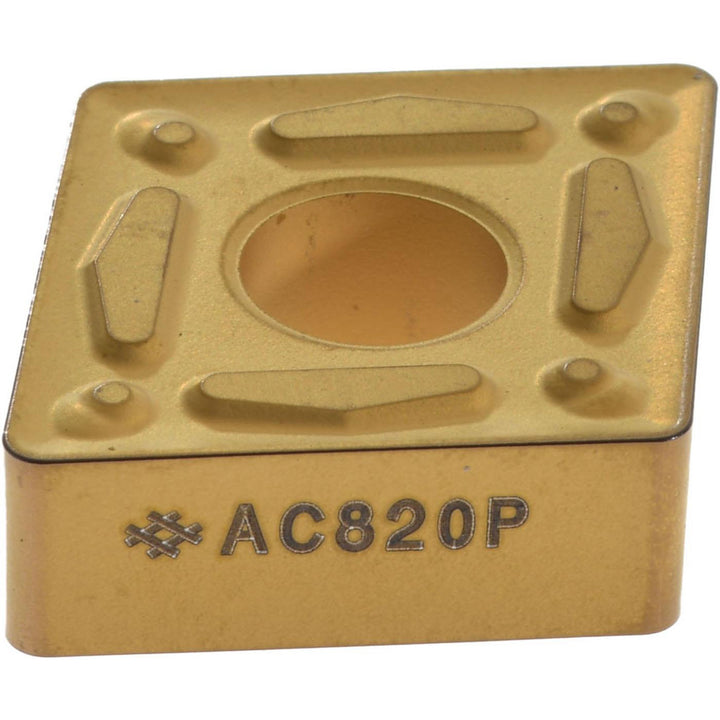

CNMG120408N-UG Carbide Insert, Grade AC820P, Absotech - Sumitomo 19RJ796
MFR# 19RJ796ISO/ANSI# CNMG120408Series CN
$14.40List $18.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC820P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19RJ796 is a CNMG120408N-UG carbide indexable insert, grade AC820P, Absotech coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-UG
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
