Sumitomo

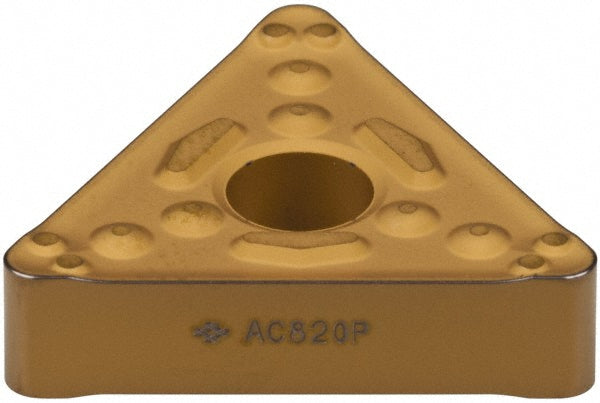

TNMG270608N-UG Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJ834
MFR# 19RJ834ISO/ANSI# TNMG270608N-UGSeries TN
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJ834 is a TNMG270608N-UG solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeTNMG542ENG
Chip breakerENG
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle60.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0827
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code542
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270608N-UG
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
