Sumitomo

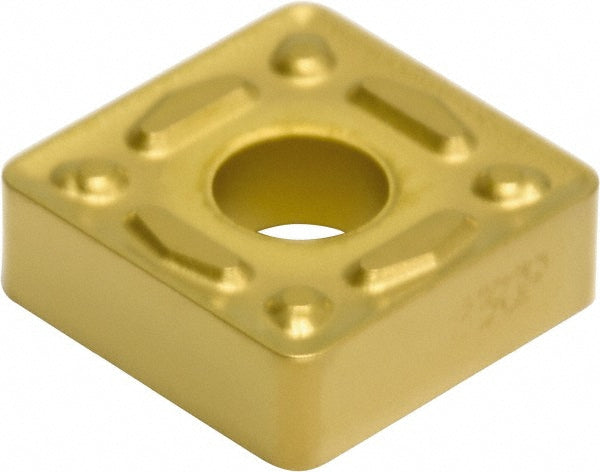

SNMG090308N-UG Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJ857
MFR# 19RJ857ISO/ANSI# SNMG090308N-UGSeries SN
$7.86List $10.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJ857 is a SNMG090308N-UG solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeSNMG322ENG
Chip breakerENG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle90.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialSolid Carbide
Insert shapeSquare
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG090308N-UG
Manufacturer gradeAC820P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
Width in3/8
