Sumitomo

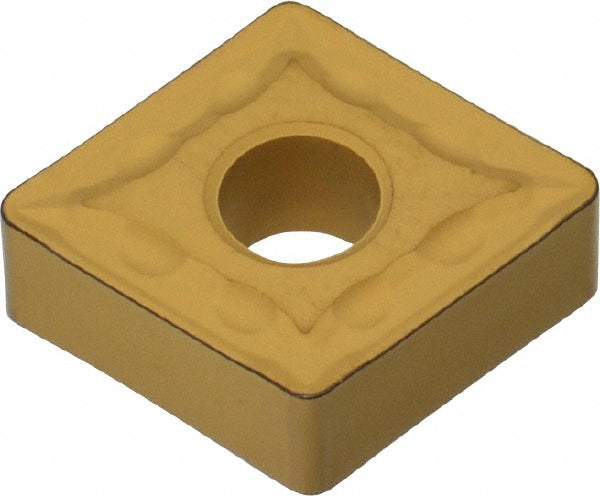

CNMG160612N-MU Solid Carbide Insert, Grade AC820P, Absotech - Sumitomo 19RJAFL
MFR# 19RJAFLISO/ANSI# CNMG160612N-MUSeries CN
$20.31List $26.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19RJAFL is a CNMG160612N-MU solid carbide indexable insert, grade AC820P, Absotech coated. Suited for m, p.
Specifications
Ansi codeCNMG543EMU
Chip breakerEMU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in3/64
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-MU
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
