Sumitomo

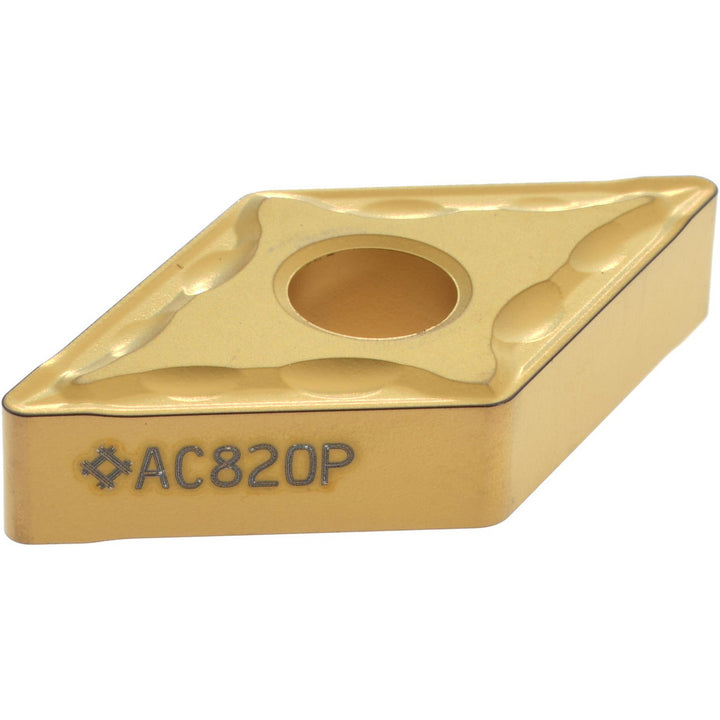

DNMG150408N-MU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJAFP
MFR# 19RJAFPISO/ANSI# DNMG150408Series DN
$20.54List $25.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJAFP is a DNMG150408N-MU carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerEMU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-MU
Iso insert codeDNMG150408
Iso size code150408
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
