Sumitomo

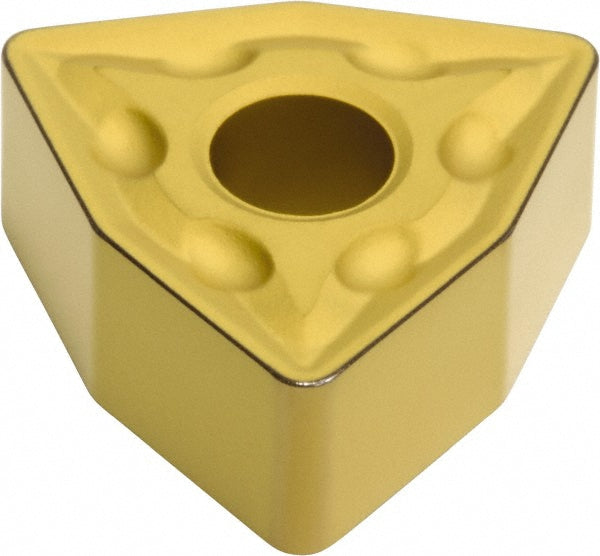

WNMG080408N-MU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJAFT
MFR# 19RJAFTISO/ANSI# WNMG080408N-MUSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJAFT is a WNMG080408N-MU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeWNMG432EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-MU
Manufacturer gradeAC820P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
