Sumitomo

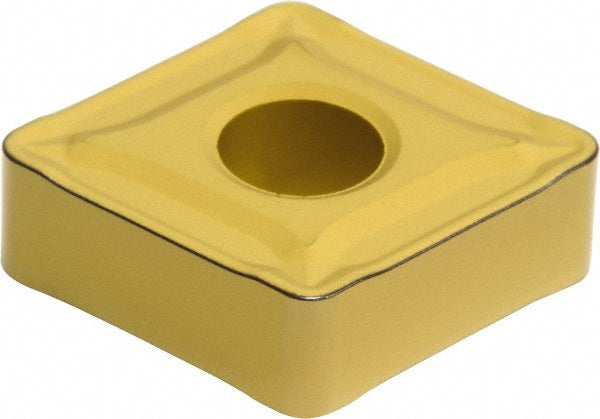

CNMG120408N-MX Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJAKM
MFR# 19RJAKMISO/ANSI# CNMG120408N-MXSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJAKM is a CNMG120408N-MX carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEMX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-MX
Manufacturer gradeAC820P
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
