Sumitomo

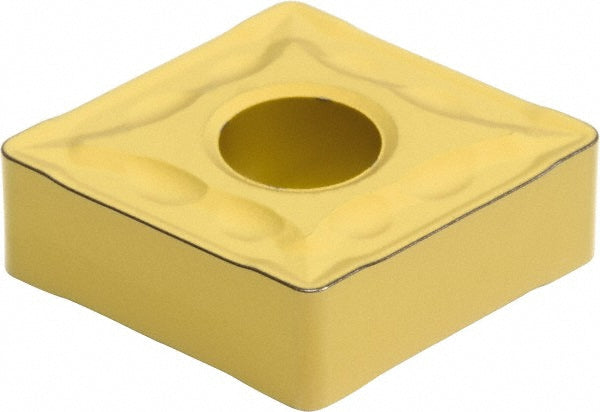

CNMG160608N-MU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJALF
MFR# 19RJALFISO/ANSI# CNMG160608N-MUSeries CN
$20.31List $26.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJALF is a CNMG160608N-MU carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608N-MU
Manufacturer gradeAC820P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
