Sumitomo

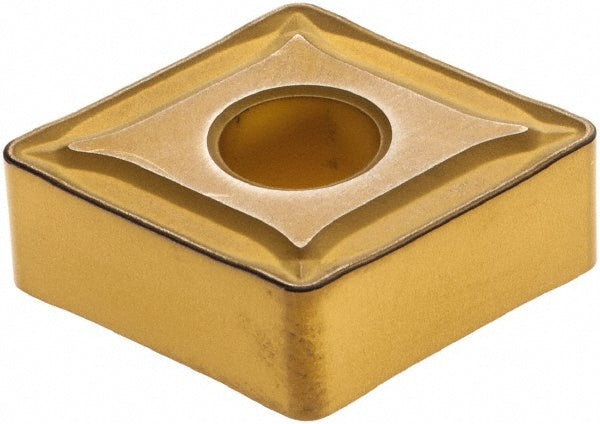

CNMG160612N-MX Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJANG
MFR# 19RJANGISO/ANSI# CNMG160612N-MXSeries CN
$23.36List $29.44
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJANG is a CNMG160612N-MX solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeCNMG543EMX
Chip breakerEMX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-MX
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
