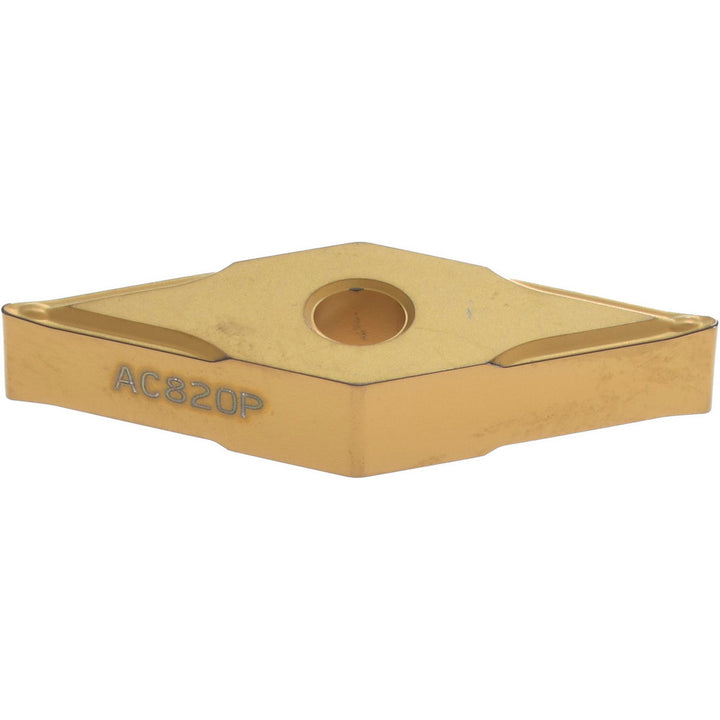

VNMG160404N-SU Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJAPR

Sumitomo

VNMG160404N-SU Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJAPR

MFR# 19RJAPRISO/ANSI# VNMG160404Series VN

$18.42List $23.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJAPR is a VNMG160404N-SU carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeVNMG331
Ansi size code331
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-SU
Iso insert codeVNMG160404
Iso size code160404
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
