Sumitomo

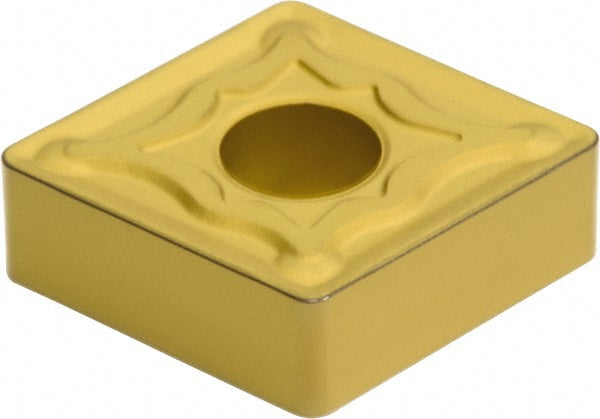

CNMG160608N-UX Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJAVK
MFR# 19RJAVKISO/ANSI# CNMG160608N-UXSeries CN
$20.31List $26.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJAVK is a CNMG160608N-UX solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeCNMG542EUX
Chip breakerEUX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608N-UX
Manufacturer gradeAC820P
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
