Sumitomo

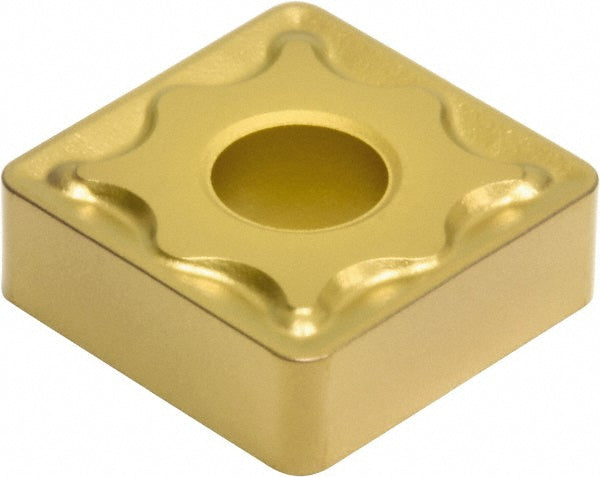

SNMG120408N-UX Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJAVS
MFR# 19RJAVSISO/ANSI# SNMG120408N-UXSeries SN
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJAVS is a SNMG120408N-UX solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeSNMG432EUX
Chip breakerEUX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle90.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408N-UX
Manufacturer gradeAC820P
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
Width in1/2
