Sumitomo

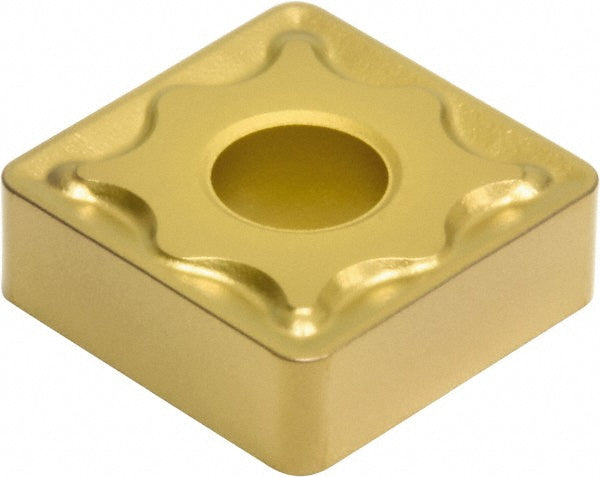

SNMG190616N-UX Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBEL
MFR# 19RJBELISO/ANSI# SNMG190616N-UXSeries SN
$21.87List $28.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJBEL is a SNMG190616N-UX solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeSNMG644EUX
Chip breakerEUX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.2500
Included angle90.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialSolid Carbide
Insert shapeSquare
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190616N-UX
Manufacturer gradeAC820P
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
Width in3/4
