Sumitomo

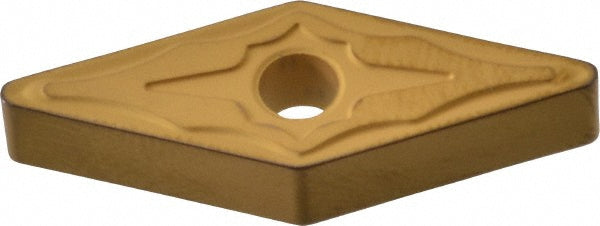

VNMG160408N-UX Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBEQ
MFR# 19RJBEQISO/ANSI# VNMG160408N-UXSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJBEQ is a VNMG160408N-UX solid carbide indexable insert, grade AC820P, Al2O3 coated. Suited for m, p.
Specifications
Ansi codeVNMG332EUX
Chip breakerEUX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-UX
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
