Sumitomo

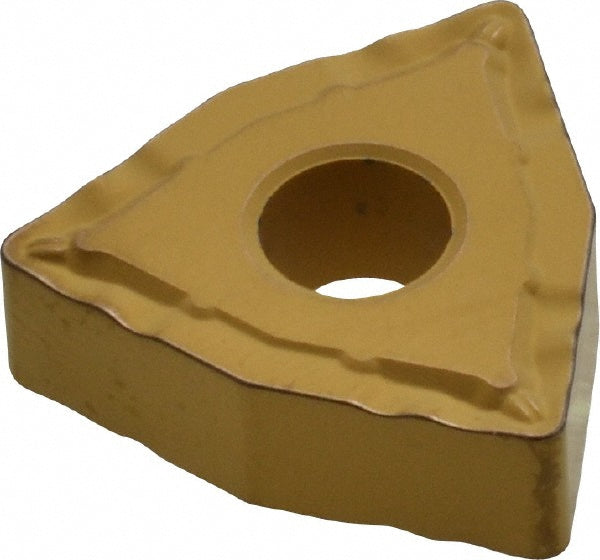

WNMG080408N-SX Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJBFA
MFR# 19RJBFAISO/ANSI# WNMG080408N-SXSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJBFA is a WNMG080408N-SX solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeWNMG432ESX
Chip breakerESX
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2300
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-SX
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
