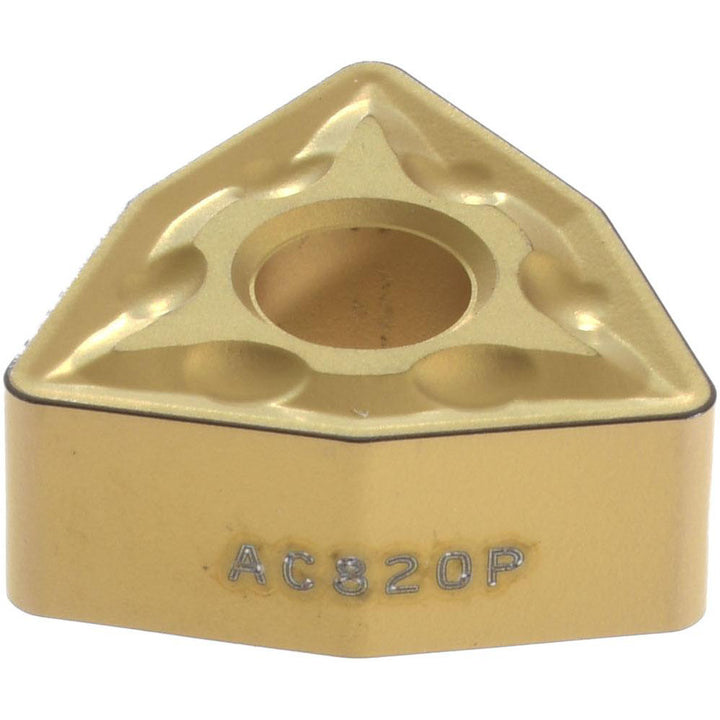

WNMG060408N-MU Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJBFY

Sumitomo

WNMG060408N-MU Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJBFY

MFR# 19RJBFYISO/ANSI# WNMG060408Series TN

$9.84List $12.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJBFY is a WNMG060408N-MU carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeWNMG332
Ansi size code332
Chip breakerEMU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2559
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408N-MU
Iso insert codeWNMG060408
Iso size code060408
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
