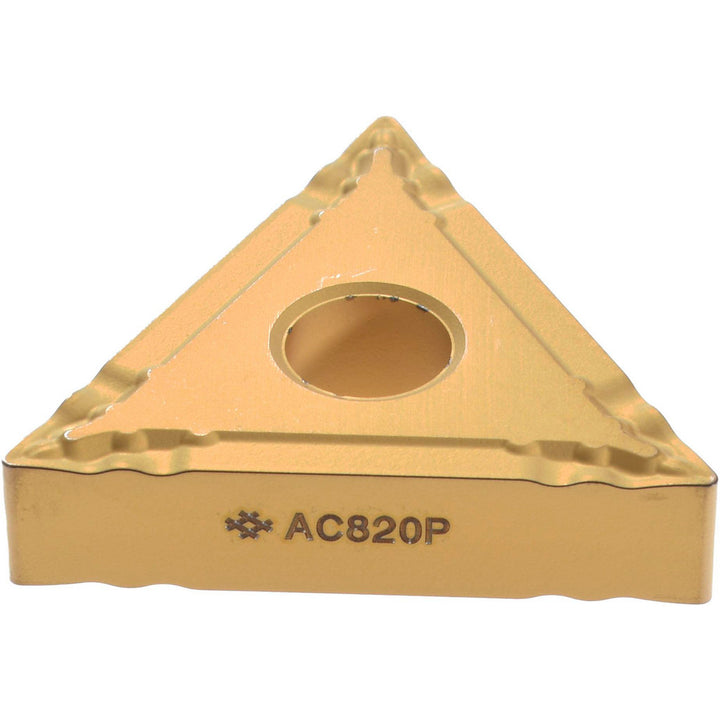

TNMG220404N-SX Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJBJT

Sumitomo

TNMG220404N-SX Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJBJT

MFR# 19RJBJTISO/ANSI# TNMG220404Series TN

$13.89List $17.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJBJT is a TNMG220404N-SX carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeTNMG431
Ansi size code431
Chip breakerESX
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404N-SX
Iso insert codeTNMG220404
Iso size code220404
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
