Sumitomo

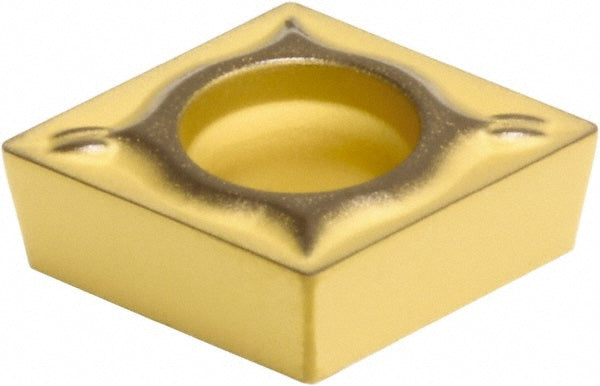

CCMT09T304N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBPE
MFR# 19RJBPEISO/ANSI# CCMT09T304N-SUSeries CC
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJBPE is a CCMT09T304N-SU carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
