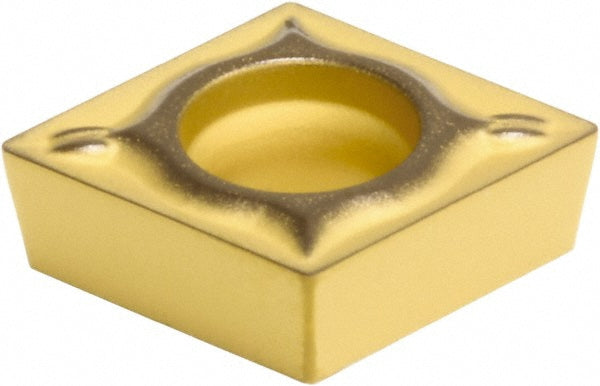

CCMT09T308N-SU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBPF
MFR# 19RJBPFISO/ANSI# CCMT09T308N-SUSeries CC
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJBPF is a CCMT09T308N-SU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeCCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
