Sumitomo
DCMT070204N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBPH
MFR# 19RJBPHISO/ANSI# DCMT070204N-SUSeries DC
$14.40List $18.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description

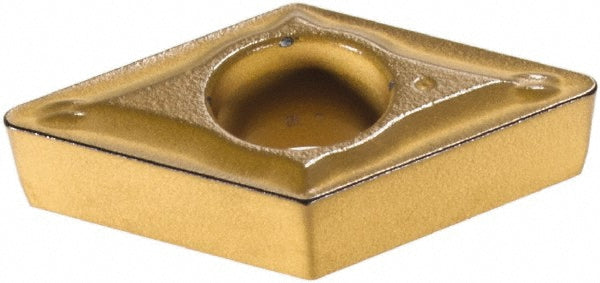

The Sumitomo 19RJBPH is a DCMT070204N-SU carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1100
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3031
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
