Sumitomo

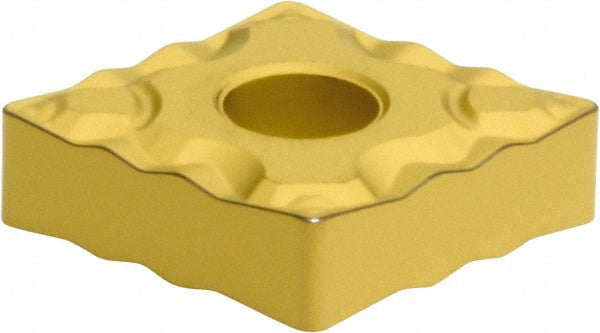

CNMG120408N-LU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBUA
MFR# 19RJBUAISO/ANSI# CNMG120408N-LUSeries CN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJBUA is a CNMG120408N-LU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeCNMG432ELU
Chip breakerELU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-LU
Manufacturer gradeAC820P
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
