Sumitomo

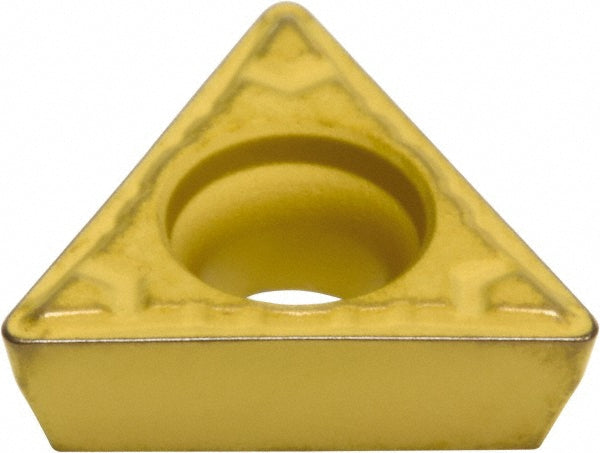

TPMT110308N-LU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBUT
MFR# 19RJBUTISO/ANSI# TPMT110308N-LUSeries TPMT
$10.12List $12.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJBUT is a TPMT110308N-LU solid carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.
Specifications
Ansi codeTPMT222ELU
Chip breakerELU
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1100
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code222
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110308N-LU
Manufacturer gradeAC820P
Primary workpiece materialSteel
RakePositive
Rake angle12
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
