Sumitomo

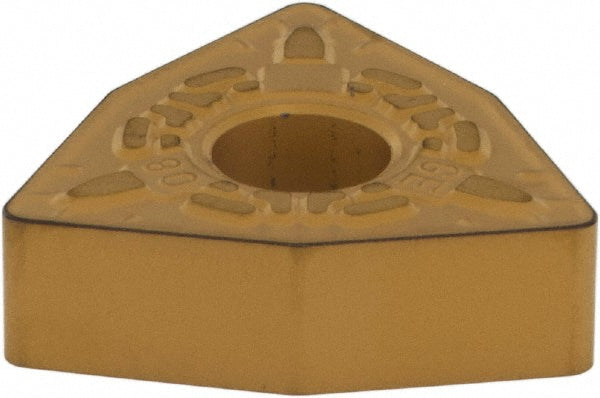

WNMG080408N-GE Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJBYH
MFR# 19RJBYHISO/ANSI# WNMG080408N-GESeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC820P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RJBYH is a WNMG080408N-GE carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Chip breakerEGE
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-GE
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakePositive
Rake angle3
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
