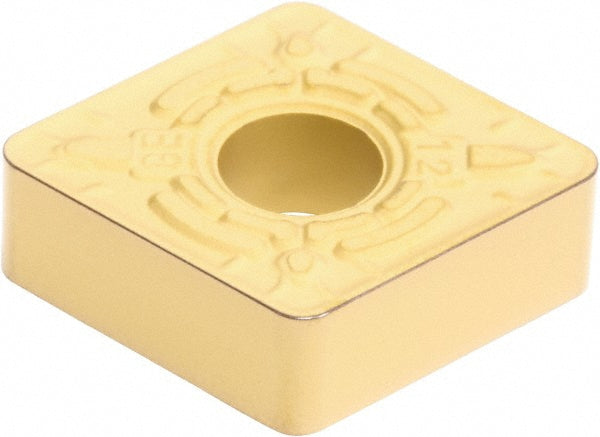

CNMG190616N-GE Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJCCJ
MFR# 19RJCCJISO/ANSI# CNMG190616N-GESeries CN
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJCCJ is a CNMG190616N-GE solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeCNMG644EGE
Chip breakerEGE
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.3126
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190616N-GE
Manufacturer gradeAC820P
RakePositive
Rake angle3
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
