Sumitomo

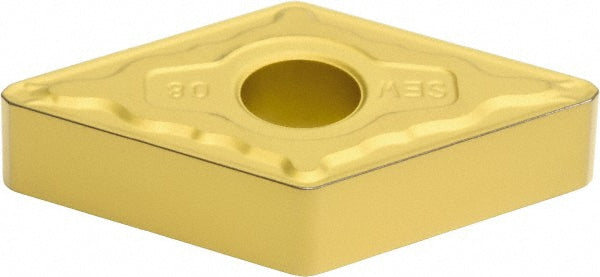

DNMX150408N-SEW Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJCCW
MFR# 19RJCCWISO/ANSI# DNMX150408N-SEWSeries DNMX
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJCCW is a DNMX150408N-SEW solid carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.
Specifications
Ansi codeDNMX432ESEW
Chip breakerESEW
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX150408N-SEW
Manufacturer gradeAC820P
Primary workpiece materialSteel
RakePositive
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
