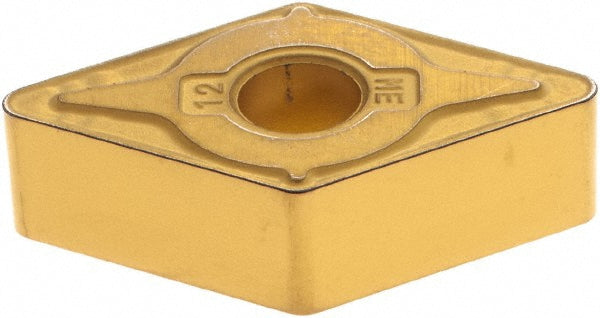

DNMG150612N-ME Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJCED
MFR# 19RJCEDISO/ANSI# DNMG150612N-MESeries DN
$21.39List $27.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJCED is a DNMG150612N-ME solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeDNMG443EME
Chip breakerEME
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code443
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG150612N-ME
Manufacturer gradeAC820P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
